HP-R19 Endoscope Camera Coupler
Price, lead time and documents for your market are confirmed in the quotation.
Key takeaways
- Optical coupler that connects the eyepiece of a rigid endoscope to a camera head.
- Compact black unit with an eyepiece clamp, small enough to hold in the palm.
- Camera-side mount and focal length are confirmed per camera model before shipment.

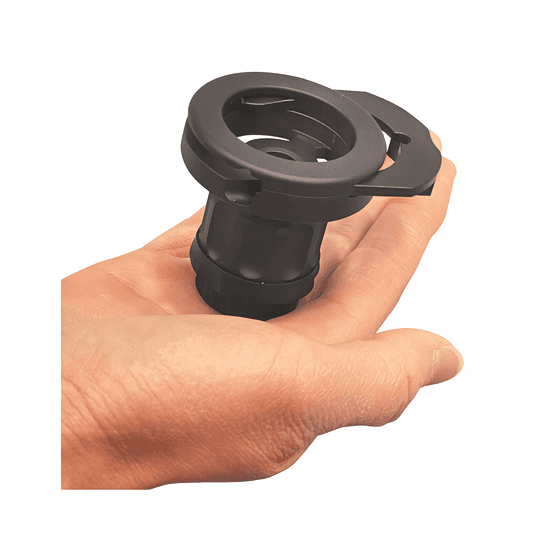

The HP-R19 is an endoscope camera coupler: the optical adapter that connects the eyepiece of a rigid endoscope to a camera head. As pictured, it is a compact black unit with an eyepiece clamp at one end, small enough to hold in the palm of the hand.
Key Features
- Joins the scope eyepiece to the camera head and carries the image to the camera sensor
- Eyepiece clamp for quick attachment and removal of scopes
- Lets one camera head work with rigid scopes from different specialties
- Compact size, practical as a spare or replacement part
Applications
Connecting rigid ENT, laparoscopy, arthroscopy, urology and gynecology scopes to a camera head; keeping a spare coupler for busy departments; replacing a worn or damaged coupler; adapting existing scopes to a new camera system.
How to specify when requesting a quote
- The camera head model and its mount type
- The scope eyepiece type and brand
- Required focal length or zoom range, if known
- Whether you need a camera and coupler as a set
- Destination country and quantity
Specifications
| Model | HP-R19 |
|---|---|
| Product type | Coupler |
| Function | Optical coupler between rigid scope eyepiece and camera head (as pictured) |
| Color | Black (as pictured) |
Documents
Certificates, declarations of conformity and test reports for the specific model and destination market are provided with the quotation.
Send the model of your camera head and endoscopes so mechanical and optical compatibility can be confirmed in writing before shipment.
Frequently asked questions
+What is an endoscope coupler used for?
It mounts a camera head on the eyepiece of a rigid scope and focuses the scope image onto the camera sensor. A camera head without a built-in scope mount needs a coupler to attach to an optical scope.
+Does the HP-R19 fit C-mount camera heads?
The camera-side mount of the HP-R19 is confirmed with the quotation. Send your camera head model and we confirm the fit in writing before you order.
+What are the parts of an endoscopy camera system called?
From patient to screen: the rigid scope with its eyepiece and light post, the light cable and light source, the coupler, the camera head, the camera control unit and the monitor, usually on a cart. The HP-R19 is the coupler in that chain.
