HP-R01 Full HD Endoscopic Camera Head
Price, lead time and documents for your market are confirmed in the quotation.
Key takeaways
- Full HD endoscopic camera head that adds video to rigid scopes you already own.
- No built-in screen: pair it with a medical monitor (HP-R14 to HP-R16) and a light source (HP-R13).
- Video output, coupler type and package contents are confirmed in writing with each quotation.

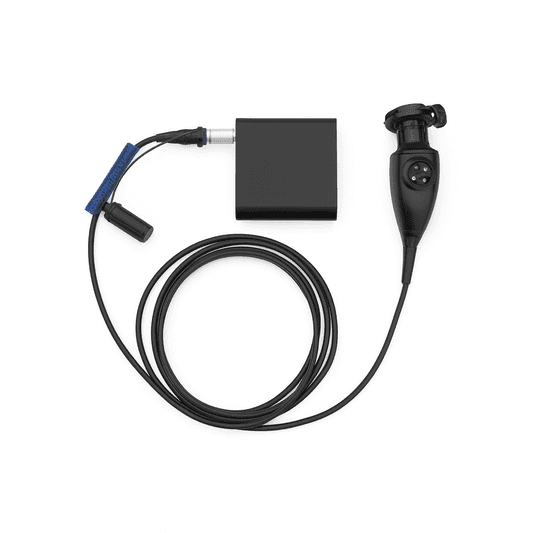

The HP-R01 is a Full HD endoscopic camera head for clinics and hospitals that already own rigid scopes and want video without buying a full tower. The product photo shows a handheld camera head with four control buttons, a long cable and a compact black control box. There is no built-in screen, so it connects to a separate display.
Key Features
- Full HD (FHD) resolution class for clear video of rigid-scope procedures
- Four buttons on the handpiece, so common camera functions can be operated from the camera head (button functions are confirmed with the quotation)
- Front optical mount for attaching the head to a scope eyepiece
- Compact kit of camera head, cable and small control box (as pictured), easy to add to an existing light source and monitor
Applications
Adding video to rigid endoscopes in ENT, gynecology, urology, arthroscopy and general surgery; documenting findings for patient records and referrals; teaching and remote viewing. For laparoscopy, pair the camera head with a suitable light source and a surgical monitor.
How to specify when requesting a quote
- The scopes you will use: brand, diameter and eyepiece type
- The display, recorder or computer you will connect, and its video input
- Your current light source, or add the HP-R13 light source
- Destination country, mains voltage and plug type
- Quantity, plus any spare camera heads or cables
Specifications
| Model | HP-R01 |
|---|---|
| Product type | Endoscope camera |
| Resolution class | Full HD (FHD) |
| Configuration | Handheld camera head, cable and compact control box (as pictured) |
| Camera head controls | Four buttons on the handpiece (as pictured) |
Documents
Certificates, declarations of conformity and test reports for the specific model and destination market are provided with the quotation.
Tell us the destination country and the mains supply at the site (voltage, frequency and plug type) so the correct configuration and document set can be confirmed before shipment.
Frequently asked questions
+What is an endoscopic camera head used for?
It attaches to the eyepiece of a rigid endoscope and turns the optical image into video, so the whole team can watch the procedure on a monitor, capture images for the record and use the footage for teaching.
+How do I set up an endoscope camera head?
Attach the camera head to the scope eyepiece, connect the light cable between the scope and the light source, connect the camera to its control box and display, then white-balance on a white surface and focus before use. We confirm the HP-R01 connection steps with your quotation.
+Does the HP-R01 include a monitor or a light source?
No monitor is shown with the HP-R01. Plan a separate medical display (HP-R14 to HP-R16) and a light source (HP-R13) unless you already have them. The exact package contents are listed in the quotation.
+Which video output does the HP-R01 use?
The output interface is confirmed with the quotation. Tell us which monitor, recorder or computer you plan to connect and we will confirm compatibility before you order.
