HP-Y11 Steel Wheelchair with Elevating Leg Rests
Price, lead time and documents for your market are confirmed in the quotation.
Key takeaways
- HP-Y11 is a chromed steel wheelchair with detachable, elevating leg rests and calf pads for users who need leg elevation.
- Flip-up desk-length armrests let the user sit close to a table; 8-inch (200 × 50 mm) solid front casters and 58 cm MAG rear wheels.
- 46 cm seat, 100 kg rating, 17 kg net; 130 units per 20' FCL or 310 per 40' HQ.

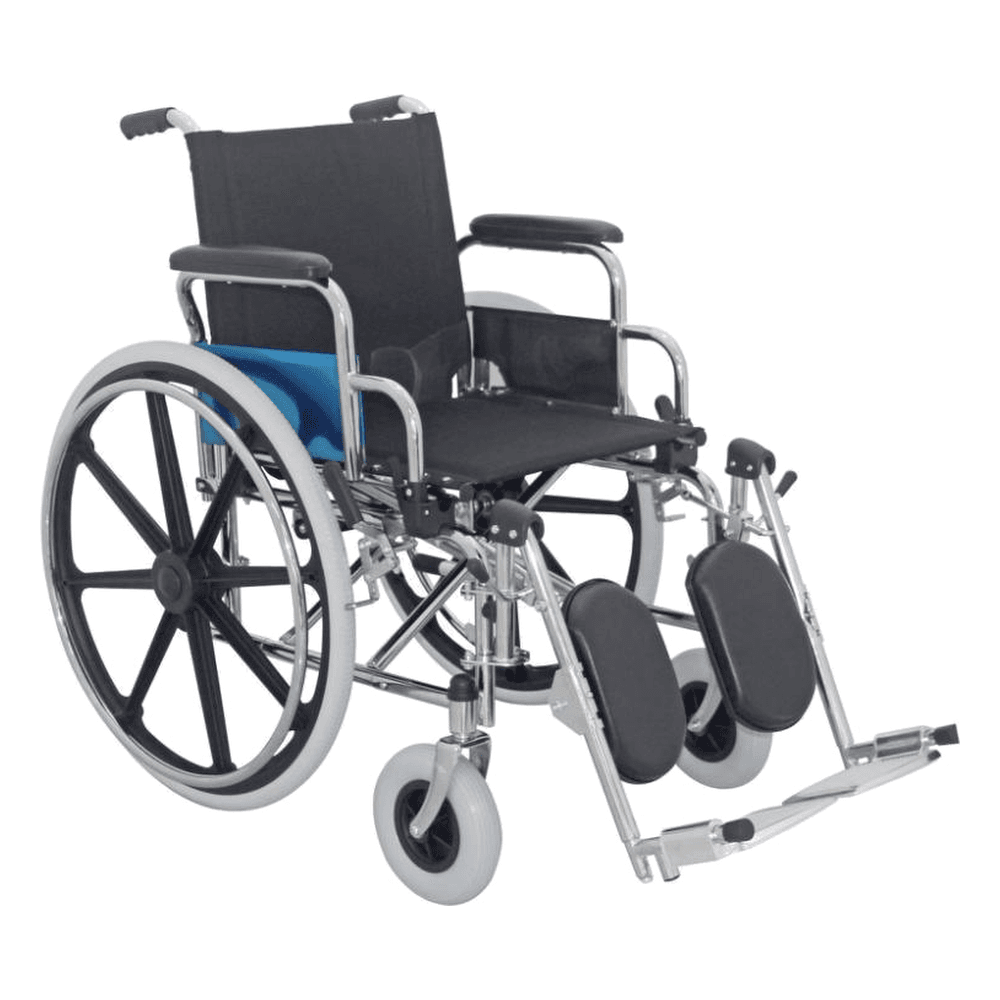

The HP-Y11 is a chromed steel wheelchair with elevating leg rests. The leg rests raise the lower legs, carry calf pads for support and detach when the user transfers. Desk-length armrests are shorter at the front and flip up, so the user can roll close to a desk or dining table and still transfer sideways.
Within our range: HP-Y10 shares the chromed double-cross-brace frame but has fixed arms and footrests. For recline and head support in addition to elevating leg rests, see HP-Y13.
Key Features
- Chromed steel frame with double cross brace
- Flip-up desk-length armrests
- Detachable, elevating leg rests with calf pads
- 200 × 50 mm (8-inch) solid front casters
- 58 cm MAG rear wheels with PU tires
- Aluminum footplates
Applications
- Users who have been advised to keep a leg raised, for example after lower-limb surgery or injury
- Rehabilitation and orthopedic wards
- Care homes where residents eat and work at tables
How to specify when requesting a quote
Send HOPE INTERNATIONAL these details with your HP-Y11 inquiry:
- Quantity, and whether spare leg-rest sets should be quoted
- Destination and documents needed for hospital or tender supply
- Carton marking or labeling requirements
MOQ and lead time are confirmed with the quotation.
Specifications
| Overall width (cm) | 66 |
|---|---|
| Seat width (cm) | 46 |
| Rear wheel dia. (cm) | 58 |
| Front caster dia. (cm) | 20 |
| Seat height (cm) | 49 |
| Overall height (cm) | 87 |
| Max. user weight (kg) | 100 |
| Frame material | Chromed steel, double cross brace |
| Armrests | Flip-up, desk-length |
| Leg rests | Detachable, elevating, with calf pads |
| Front casters | Solid, 200 × 50 mm (8") |
| Rear wheels | MAG with PU tires |
| Footplates | Aluminum |
Packaging & shipping
| Carton size (cm) | 80x30x88 |
|---|---|
| N.W. (kg) | 17 |
| G.W. (kg) | 19 |
| Qty per 20' FCL | 130 |
| Qty per 40' HQ | 310 |
Documents
Certificates, declarations of conformity and test reports for the specific model and destination market are provided with the quotation.
Tell us the destination country and any registration, import or tender documents you need, and we will match the document set to HP-Y11.
Frequently asked questions
+Who needs a wheelchair with elevating leg rests?
Users who must keep a leg straight or raised, such as after knee, ankle or lower-leg surgery or with a cast, and users advised by a clinician to elevate the legs. The HP-Y11 leg rests elevate, carry calf pads and detach for transfers.
+What is a wheelchair with desk length arms?
Desk-length armrests are shorter at the front, so the chair can roll close to a desk or table while the rear part still supports the arm. On HP-Y11 they also flip up for side transfers.
+What size are the front casters?
8-inch (200 × 50 mm) solid casters, which roll over thresholds more easily than small casters. Rear wheels are 58 cm MAG wheels with PU tires.
+How much does HP-Y11 weigh?
17 kg net and 19 kg gross; the carton is 80 × 30 × 88 cm.
