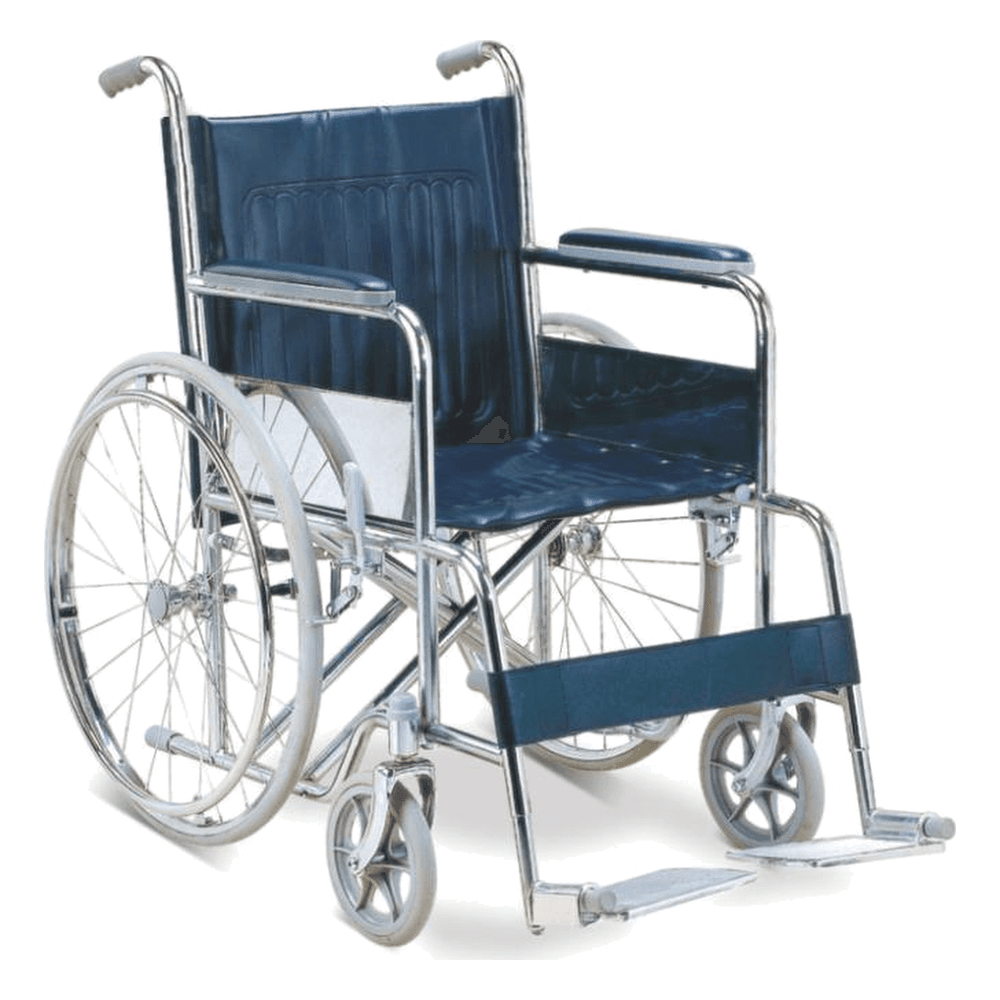

HP-Y10 Chromed Steel Wheelchair with Double Cross Brace
Price, lead time and documents for your market are confirmed in the quotation.
Key takeaways
- HP-Y10 is a standard chromed steel wheelchair with a double cross-brace frame for extra rigidity and long service life.
- Fixed armrests and footrests, solid puncture-free 58 cm rear wheels and aluminum footplates.
- 46 cm seat, 100 kg rating and 16 kg net; 108 units per 20' FCL or 306 per 40' HQ.
The HP-Y10 is a classic chromed steel wheelchair for hospital and institutional fleets. A double cross brace under the seat stiffens the frame, and the chrome finish with fixed armrests and footrests gives a durable standard wheelchair. Solid rear wheels remove the risk of flat tires.
Within our range: Where HP-Y09 is the economy powder-coated option optimized for freight, the Y10 is chromed with a double cross brace. HP-Y11 shares the chromed frame but adds elevating leg rests and desk-length flip-up arms.
Key Features
- Chromed steel frame with double cross brace
- Fixed armrests and fixed footrests
- 20 cm solid front casters
- 58 cm solid rear wheels, puncture-free
- Aluminum footplates
- 46 cm seat width, 47 cm seat height, 100 kg maximum user weight
Applications
- Hospital lobbies, wards and outpatient departments
- Long-term care facilities that want a durable standard chair
- Clinics replacing worn chairs in an existing steel fleet
How to specify when requesting a quote
To quote HP-Y10 accurately, HOPE INTERNATIONAL needs:
- Quantity and delivery schedule
- Whether the chairs will be mixed with HP-Y09 or HP-Y11 in one container
- Destination country, port and preferred incoterm
- Documents required for import registration or tender submission
MOQ and lead time are confirmed with the quotation.
Specifications
| Overall width (cm) | 65 |
|---|---|
| Seat width (cm) | 46 |
| Rear wheel dia. (cm) | 58 |
| Front caster dia. (cm) | 20 |
| Seat height (cm) | 47 |
| Overall height (cm) | 87 |
| Max. user weight (kg) | 100 |
| Frame material | Chromed steel, double cross brace |
| Armrests | Fixed |
| Footrests | Fixed |
| Rear wheels | Solid, puncture-free |
| Front casters | Solid |
| Footplates | Aluminum |
Packaging & shipping
| Carton size (cm) | 91.5x27x88 |
|---|---|
| N.W. (kg) | 16 |
| G.W. (kg) | 18 |
| Qty per 20' FCL | 108 |
| Qty per 40' HQ | 306 |
Documents
Certificates, declarations of conformity and test reports for the specific model and destination market are provided with the quotation.
Tell us the destination country and any registration, import or tender documents you need, and we will match the document set to HP-Y10.
Frequently asked questions
+What is the difference between a transport wheelchair and a standard wheelchair?
A standard wheelchair like HP-Y10 has large rear wheels (58 cm here) and a full-size frame for daily sitting. A transport wheelchair such as HP-Y04 has small rear wheels, weighs less and is pushed by a companion.
+What does a double cross brace do?
Two cross members under the seat spread the load across the frame, reducing flex and wear over years of use. It is a common feature of institutional standard wheelchairs.
+How much does HP-Y10 weigh?
16 kg net and 18 kg gross. The carton is 91.5 × 27 × 88 cm.
+Are the tires solid or pneumatic?
Solid, front and rear, so there are no punctures to repair.
