HP-AG10 Manual Hand-Crank Patient Transfer Chair with Commode
Price, lead time and documents for your market are confirmed in the quotation.
Key takeaways
- HP-AG10 is a manual patient transfer chair: two hand cranks raise and lower the seat between 37 and 57 cm.
- A split-seat commode, an IV pole hole, a foot brake, 5-inch silent front wheels with brake and 3-inch universal rear wheels.
- Seat width 46 cm or 51 cm; 100 kg rating; 23 kg net.

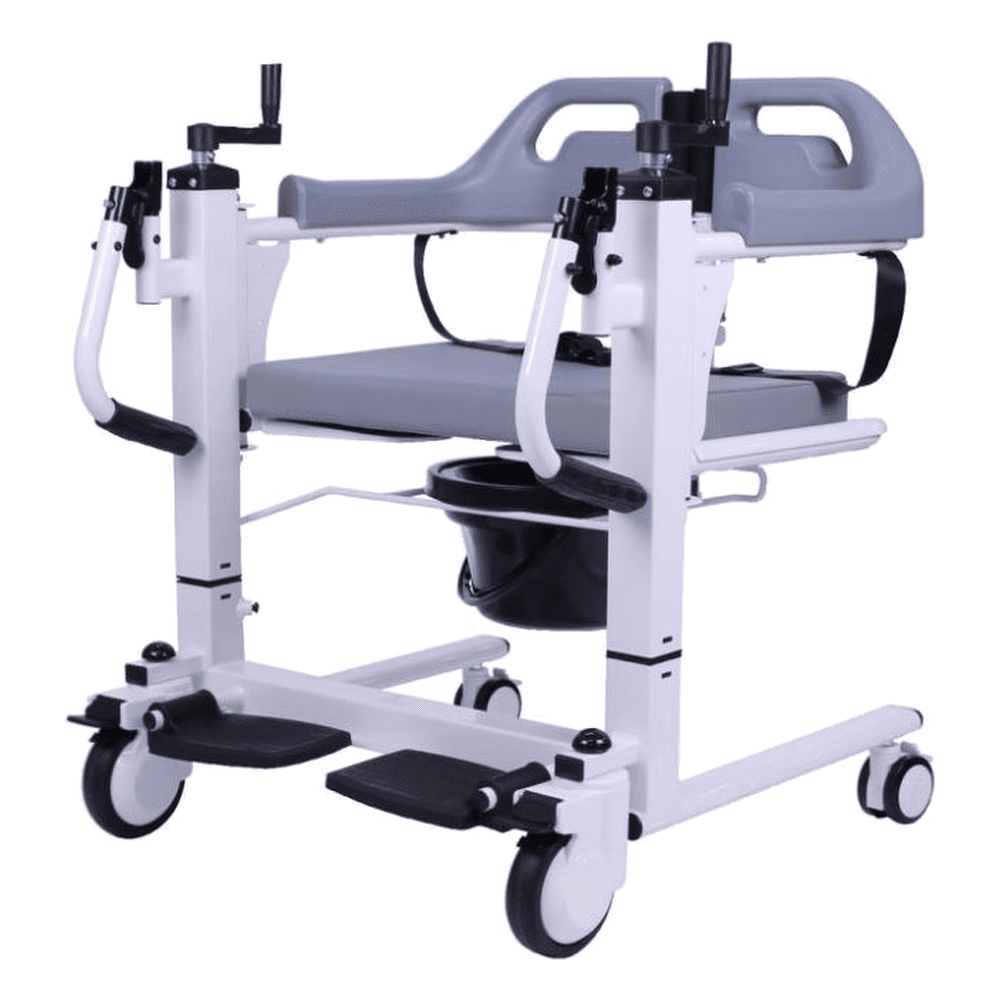

The HP-AG10 is a manual patient transfer chair for bed-to-toilet transfers without electricity. The caregiver sets the seat height with two hand cranks, from 37 to 57 cm, to line up with the bed or toilet. A split-seat commode allows toileting in the chair, an IV pole hole keeps an infusion with the patient, and a foot brake plus braked front wheels hold the chair still.
Within our range: HP-AG09 lifts electrically to 65 cm and carries 150 kg; the AG10 is hand-cranked, rated for 100 kg and offered in two seat widths.
Key Features
- Steel frame; seat height adjusted by two hand cranks (37–57 cm)
- Commode with split-seat design
- IV pole hole
- Foot brake
- 5-inch silent front wheels with brake; 3-inch universal rear wheels
- Seat width 46 cm or 51 cm
Applications
- Facilities with unreliable power supply
- Hospitals and nursing homes
- Home care with a trained caregiver
How to specify when requesting a quote
To quote HP-AG10 accurately, HOPE INTERNATIONAL needs:
- Seat width (46 or 51 cm) and quantity per width
- Whether an IV pole should be quoted with the chair
- Destination country, port and preferred incoterm
- Documents required for import registration or tender submission
MOQ and lead time are confirmed with the quotation.
Specifications
| Overall width (cm) | 60 |
|---|---|
| Seat width (cm) | 46 |
| Rear / front wheel dia. | 3" / 5" |
| Seat height (cm) | 37-57 |
| Overall height (cm) | 79-99 |
| Max. user weight (kg) | 100 |
| Frame material | Steel |
| Lifting | Manual, two hand cranks |
| Commode | Split-seat design |
| IV pole | IV pole hole |
| Brakes | Foot brake; front wheels with brake |
| Seat width options | 46 cm or 51 cm |
Packaging & shipping
| Carton size (cm) | 59x47x68 |
|---|---|
| N.W. (kg) | 23 |
| G.W. (kg) | 28 |
Documents
Certificates, declarations of conformity and test reports for the specific model and destination market are provided with the quotation.
Tell us the destination country and any registration, import or tender documents you need, and we will match the document set to HP-AG10.
Frequently asked questions
+Wheelchair vs transfer chair: what is the difference?
A wheelchair is for sitting and moving over longer distances. A transfer chair is built for the transfer itself: HP-AG10 adjusts seat height to match the bed or toilet and has a split commode seat, and it is intended for short caregiver-pushed moves.
+Manual vs electric patient transfer chair: which should I choose?
Manual (HP-AG10) needs no power and suits sites with unreliable electricity; the caregiver cranks the height. Electric (HP-AG09) adjusts with a joystick and carries 150 kg versus 100 kg.
+Which seat widths are available?
46 cm or 51 cm. State the width and quantity per width when you request a quote.
+Can an IV pole be fitted?
The chair has an IV pole hole. Tell us whether you need a pole quoted with the chair.
