HP-AG09 Electric Patient Lift Transfer Chair with Commode
Price, lead time and documents for your market are confirmed in the quotation.
Key takeaways
- HP-AG09 is an electric patient lift transfer chair: a joystick raises and lowers the seat between 40 and 65 cm.
- It moves the patient between bed, toilet and chair; the PU commode seat opens to the rear beyond 90°.
- Rated for 150 kg, the highest in our transfer range; 27 kg net, front wheels with brakes.

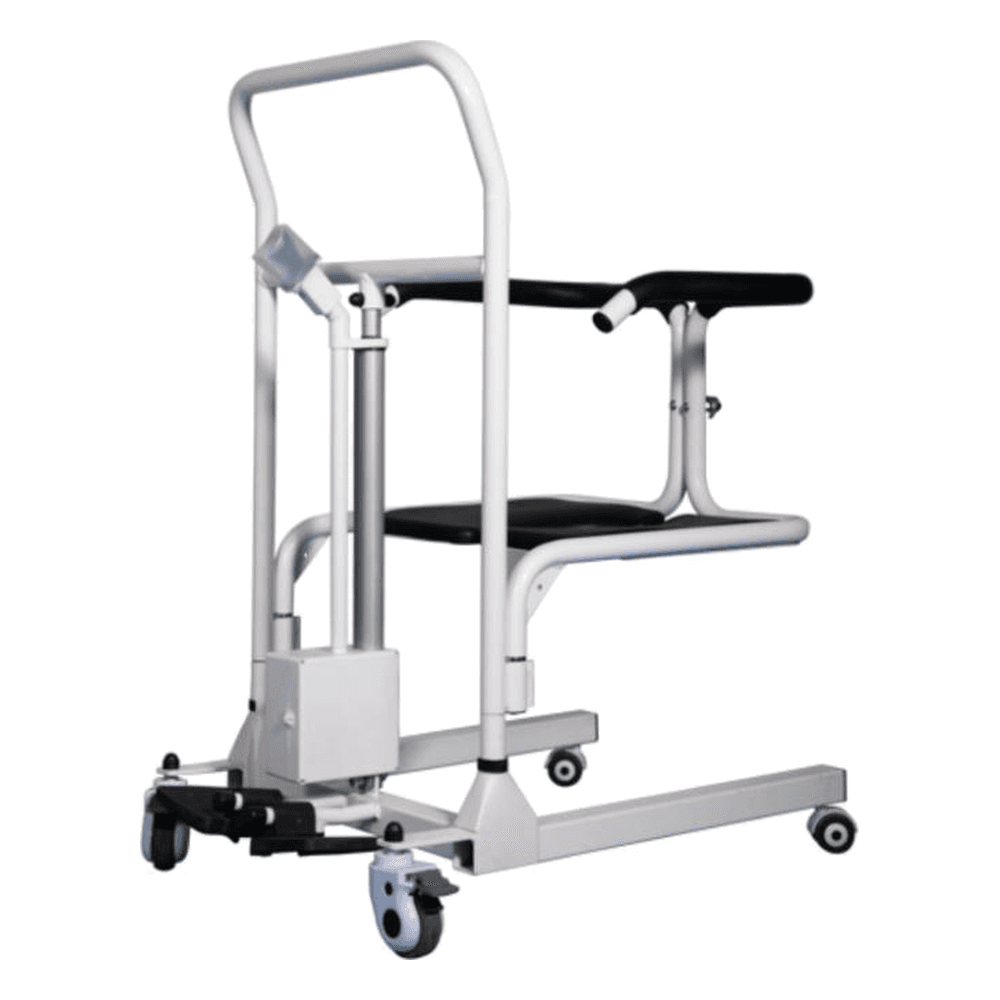

The HP-AG09 is an electric patient lift transfer chair that reduces the manual lifting in bed-to-toilet and bed-to-chair moves. The caregiver raises or lowers the seat with a joystick between 40 and 65 cm to match the bed or toilet, then rolls the patient on the chair's wheels. A PU commode seat allows toileting in the chair, and the seat opens to the rear beyond 90 degrees for access.
Within our range: HP-AG10 does the same job with two hand cranks instead of a motor and carries 100 kg; the AG09 is electric and rated for 150 kg.
Key Features
- Electric lifting with joystick control
- Seat height 40–65 cm
- Iron frame with foam handle bar
- PU commode seat; seat opens to the rear beyond 90°
- Two front wheels with brakes
- 150 kg maximum user weight; 45 cm seat width
Applications
- Nursing homes and long-term care facilities
- Home care for patients with very limited mobility
- Hospital and rehabilitation wards
How to specify when requesting a quote
For a complete HP-AG09 quotation, tell HOPE INTERNATIONAL:
- Quantity and destination
- Destination mains voltage and plug type, so power details can be matched
- Documents required for import registration or tender submission
- Carton marking or labeling requirements
MOQ and lead time are confirmed with the quotation.
Specifications
| Overall width (cm) | 51.8 |
|---|---|
| Seat width (cm) | 45 |
| Rear / front wheel dia. | 2" / 3" |
| Seat height (cm) | 40-65 |
| Overall height (cm) | 98-123 |
| Max. user weight (kg) | 150 |
| Lifting | Electric, joystick control |
| Frame material | Iron, foam handle bar |
| Commode seat | PU, opens to rear beyond 90° |
| Brakes | Two front wheels with brakes |
Packaging & shipping
| Carton size (cm) | 89.5x58.5x34.5 |
|---|---|
| N.W. (kg) | 27 |
| G.W. (kg) | 29 |
Documents
Certificates, declarations of conformity and test reports for the specific model and destination market are provided with the quotation.
Tell us the destination country and any registration, import or tender documents you need, and we will match the document set to HP-AG09.
For this powered product, include the destination mains voltage and plug type so the matching configuration and documents can be confirmed.
Frequently asked questions
+What is a transfer chair?
A chair designed to move a seated patient between surfaces such as bed, toilet and chair with less lifting by the caregiver. HP-AG09 adds electric seat height adjustment so the seat can be matched to each surface.
+Patient lift transfer chair vs sling lift: which one do I need?
A sling (hoist) lift raises a patient who cannot bear weight or sit upright, using a sling. A lift transfer chair like HP-AG09 suits patients who can sit and be moved in a seated position. The care team should assess which is safe for each patient.
+Can an electric patient lift transfer chair be used at home?
Yes, if there is room to maneuver the 51.8 cm-wide chair beside the bed and toilet and a caregiver operates it. Power supply details for your market are confirmed with the quotation.
+What is the weight capacity?
150 kg. Seat width is 45 cm and overall height is 98–123 cm.
