HP-Y04 Lightweight Transport Wheelchair with Aluminum Frame
Price, lead time and documents for your market are confirmed in the quotation.
Key takeaways
- HP-Y04 is a lightweight transport wheelchair pushed by a companion: 25 cm rear wheels, a 40 cm seat and 11 kg net weight.
- Twin shock-absorbing springs, one-click folding and a luggage-style pull handle set it apart from our self-propelled aluminum models.
- Packed one per 55 × 35 × 73 cm carton: 207 units per 20' FCL or 493 per 40' HQ.

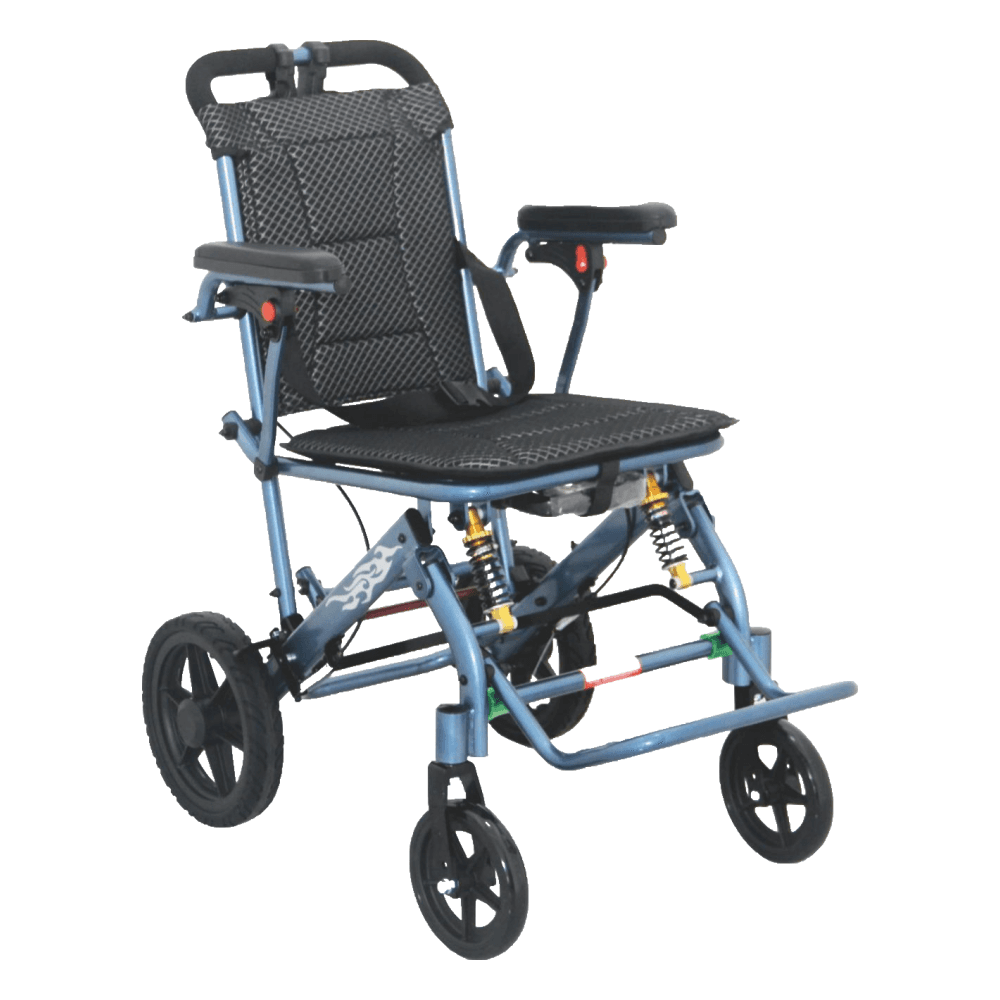

The HP-Y04 is a lightweight transport wheelchair for users who are pushed by a caregiver rather than propelling themselves. Its flat aluminum frame carries two shock-absorbing springs for a smoother ride. The chair folds with one click and then rolls on a luggage-style pull handle, so it is easy to store at home or load into a car. Net weight is 11 kg and the maximum user weight is 100 kg.
Within our range: Unlike the self-propelled HP-Y06 with 58 cm spoke wheels, the Y04 uses small 25 cm rear wheels to stay light and compact. For an even smaller fold at 7.3 kg, see the HP-Y08 portable folding wheelchair.
Key Features
- Flat aluminum frame with two shock-absorbing springs
- One-click folding frame with a luggage-style pull handle
- Foam push handles with a self-locking linked brake for the attendant
- Flip-up armrests that fold with one click, with padded armrest pads
- Flip-up footrest
- Solid front casters on aluminum forks; 25 cm MAG rear wheels with PU tires
- Breathable mesh seat and back upholstery
Applications
- Patient transport between wards, imaging and discharge in hospitals and clinics
- Home care and outpatient visits where a family member pushes the chair
- Rental and loan fleets that need a chair that folds and rolls into a car trunk
How to specify when requesting a quote
To quote HP-Y04 accurately, HOPE INTERNATIONAL needs:
- Quantity, and whether HP-Y04 will share a container with other wheelchair models
- Any spare parts to quote alongside, such as casters, tires or armrest pads
- Destination country, port and preferred incoterm
- Documents required for import registration or tender submission
MOQ and lead time are confirmed with the quotation.
Specifications
| Overall width (cm) | 54.5 |
|---|---|
| Seat width (cm) | 40 |
| Rear wheel dia. (cm) | 25 |
| Front caster dia. (cm) | 16.5 |
| Seat height (cm) | 52 |
| Overall height (cm) | 89.5 |
| Max. user weight (kg) | 100 |
| Frame material | Aluminum, flat frame with two shock-absorbing springs |
| Folding | One-click folding with luggage-style pull handle |
| Brake | Self-locking linked brake on push handles |
| Armrests | Flip-up, one-click folding, padded |
| Footrest | Flip-up |
| Rear wheels | MAG with PU tires |
| Front casters | Solid, aluminum forks |
| Upholstery | Breathable mesh |
Packaging & shipping
| Carton size (cm) | 55x35x73 |
|---|---|
| N.W. (kg) | 11 |
| G.W. (kg) | 12 |
| Qty per 20' FCL | 207 |
| Qty per 40' HQ | 493 |
Documents
Certificates, declarations of conformity and test reports for the specific model and destination market are provided with the quotation.
Tell us the destination country and any registration, import or tender documents you need, and we will match the document set to HP-Y04.
Frequently asked questions
+What is the difference between a wheelchair and a transport wheelchair?
A standard wheelchair has large rear wheels so the user can push themselves. A transport wheelchair has small rear wheels and is pushed by a companion, which makes it lighter and more compact. HP-Y04 is a transport wheelchair with 25 cm rear wheels; if your users need to self-propel, choose a model such as HP-Y06 with 58 cm rear wheels.
+How much does the HP-Y04 lightweight transport wheelchair weigh?
Net weight is 11 kg and gross weight in its carton is 12 kg. The chair is rated for users up to 100 kg.
+What is a transport chair used for?
Transport chairs move a seated person over short distances with a caregiver pushing: between hospital departments, to appointments or on outings. HP-Y04 adds twin shock-absorbing springs to soften bumps and a pull handle so the folded chair can be wheeled like luggage.
+How many HP-Y04 wheelchairs fit in a container?
Each unit ships in a 55 × 35 × 73 cm carton. Loading is 207 units per 20' FCL and 493 units per 40' HQ. Mixed loads with other models are calculated with your quotation.
