HP-S12 ABS 2-Crank Hospital Bed
Price, lead time and documents for your market are confirmed in the quotation.
Key takeaways
- Base model of our ABS manual beds: two cranks and molded ABS head and foot boards.

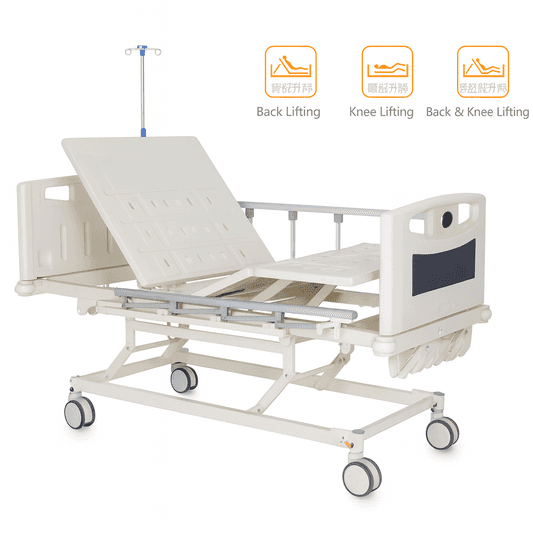

- The product image marks back lifting, knee lifting and combined back and knee lifting, and shows an IV pole and bar-type side rails.
- Need central braking? Choose HP-S11, the ABS 2 crank bed with central-locking castors.
The HP-S12 ABS 2 crank hospital bed is the base model of our ABS manual beds. Two cranks adjust the backrest and knee section, and molded ABS head and foot boards give a clean finish for wards and clinics. The product image marks back lifting, knee lifting and combined back and knee lifting, and shows an IV pole and bar-type side rails.
Key Features
- Two manual cranks; raising back and knee together gives a semi-sitting position that helps stop the patient sliding down.
- ABS head and foot boards with navy panels, named in the model.
- IV pole and bar-type side rails, as shown on the product image.
- Frame on four castors; brake type confirmed on the specification sheet.
Applications
- General wards equipping many beds on a fixed budget.
- Private clinics and day-surgery recovery rooms.
- Care homes that want back and knee positioning without motors.
How to specify when requesting a quote
- Quantity and destination port.
- Mattress thickness and cover; we match the size to the deck.
- Side rails and IV pole, if required.
- Export packing and documents required.
For central braking, see the HP-S11 2 crank bed with central locking castors.
Specifications
| Model | HP-S12 |
|---|---|
| Bed type | Manual hospital bed |
| Number of cranks | 2 |
| Head and foot board material | ABS |
| Adjustments marked on product image | Back lifting; knee lifting; back and knee lifting |
| Accessories shown on product image | IV pole; bar-type side rails |
Documents
Certificates, declarations of conformity and test reports for the specific model and destination market are provided with the quotation.
Tell us the destination country and the documents your import license, registration or tender requires. The specification sheet and assembly instructions are matched to the configuration you order.
Frequently asked questions
+How much does a 2 crank hospital bed cost?
Price depends on board material, side rails, castors, deck, mattress, quantity, packing and freight. We do not publish list prices; send quantity and destination port for an HP-S12 quote.
+What can a 2 crank bed adjust?
One crank raises the backrest and the other raises the knee section. Raising both gives a semi-sitting position that keeps the patient from sliding toward the foot end. Height adjustment is not marked on the HP-S12 product image; confirm it on the specification sheet if your wards need it.
+Can the HP-S12 be supplied with a mattress?
Ask for a mattress in your request and we will quote one sized to the deck, with the thickness and cover material you specify.
+How is the HP-S12 different from the HP-S11?
Both are ABS 2 crank beds. The HP-S11 has central-locking castors; the HP-S12 is the base model, with its castor brake type confirmed on the specification sheet.
