HP-S08 3-Crank Manual Hospital Bed
Price, lead time and documents for your market are confirmed in the quotation.
Key takeaways

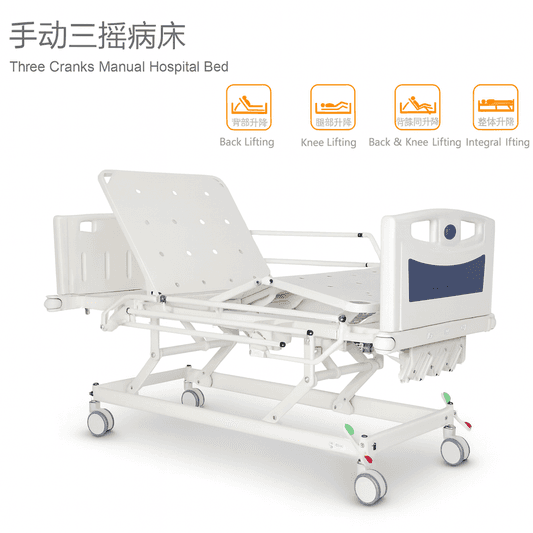

- Three manual cranks for backrest, knee section and bed height; the product image marks back, knee, back and knee, and integral lifting.
- Works without electricity, which suits hospitals with unreliable power and field projects.
- The old model name "three shakes" is a mistranslation: HP-S08 is a three-crank bed.
The HP-S08 3 crank manual hospital bed gives three adjustments without electricity. The product image marks back lifting, knee lifting, combined back and knee lifting, and integral (height) lifting. It suits hospitals and clinics with unreliable power, and buyers who want lower maintenance than an electric bed. The earlier model name, "three shakes", was a mistranslation of three cranks.
Key Features
- Three manual cranks at the foot end.
- Height-adjustable lifting frame, useful for transfers and a comfortable caregiver working height.
- Head and foot boards with navy panels and bar-type side rails, as shown on the product image.
- No motors, control box or cables to service.
Applications
- General wards in regions with frequent power cuts.
- Field hospitals and NGO health projects.
- Care homes that need height adjustment without motors.
How to specify when requesting a quote
- Quantity and destination port.
- Side rails, IV pole and mattress to include.
- Preferred export packing: assembled or knocked down for on-site assembly.
- Documents your tender or importer requires.
Need powered positioning instead? See the HP-S05 3 function electric hospital bed.
Specifications
| Model | HP-S08 |
|---|---|
| Bed type | Manual hospital bed |
| Number of cranks | 3 |
| Adjustments marked on product image | Back lifting; knee lifting; back and knee lifting; integral lifting |
| Head and foot boards (as shown on product image) | Boards with navy panels |
| Side rails (as shown on product image) | Bar-type side rails |
Documents
Certificates, declarations of conformity and test reports for the specific model and destination market are provided with the quotation.
Tell us the destination country and the documents your import license, registration or tender requires. The specification sheet and assembly instructions are matched to the configuration you order.
Frequently asked questions
+What is the difference between 2 crank and 3 crank hospital beds?
A 2 crank bed adjusts the backrest and knee section. A 3 crank bed adds a third crank for overall height, which makes transfers and bedside care easier. The HP-S08 is a 3 crank bed; our 2 crank models include the HP-S10, HP-S11, HP-S12, HP-S13 and HP-S15.
+How do you crank a hospital bed?
Pull out the crank handle for the section you want to move and turn it until the section reaches the position; turning the other way lowers it. Each crank drives one section. Stow the handles after use so nobody trips on them.
+How much does a 3 crank manual hospital bed cost?
Price depends on board material, side rails, deck, mattress, quantity, packing and freight. We do not publish list prices; send quantity and destination port for an HP-S08 quote.
+How is the HP-S08 different from the HP-S09?
Both are three-function manual beds. The HP-S09 is specified with a long-hole perforated deck, named in its model. The HP-S08 is the three-crank bed shown with navy-panel boards and a height-lifting frame. Compare the two specification sheets before ordering.
